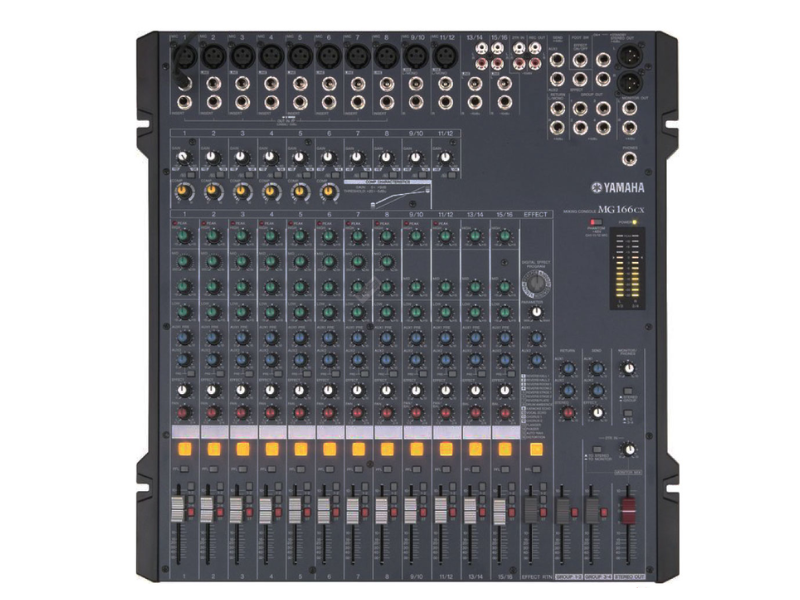

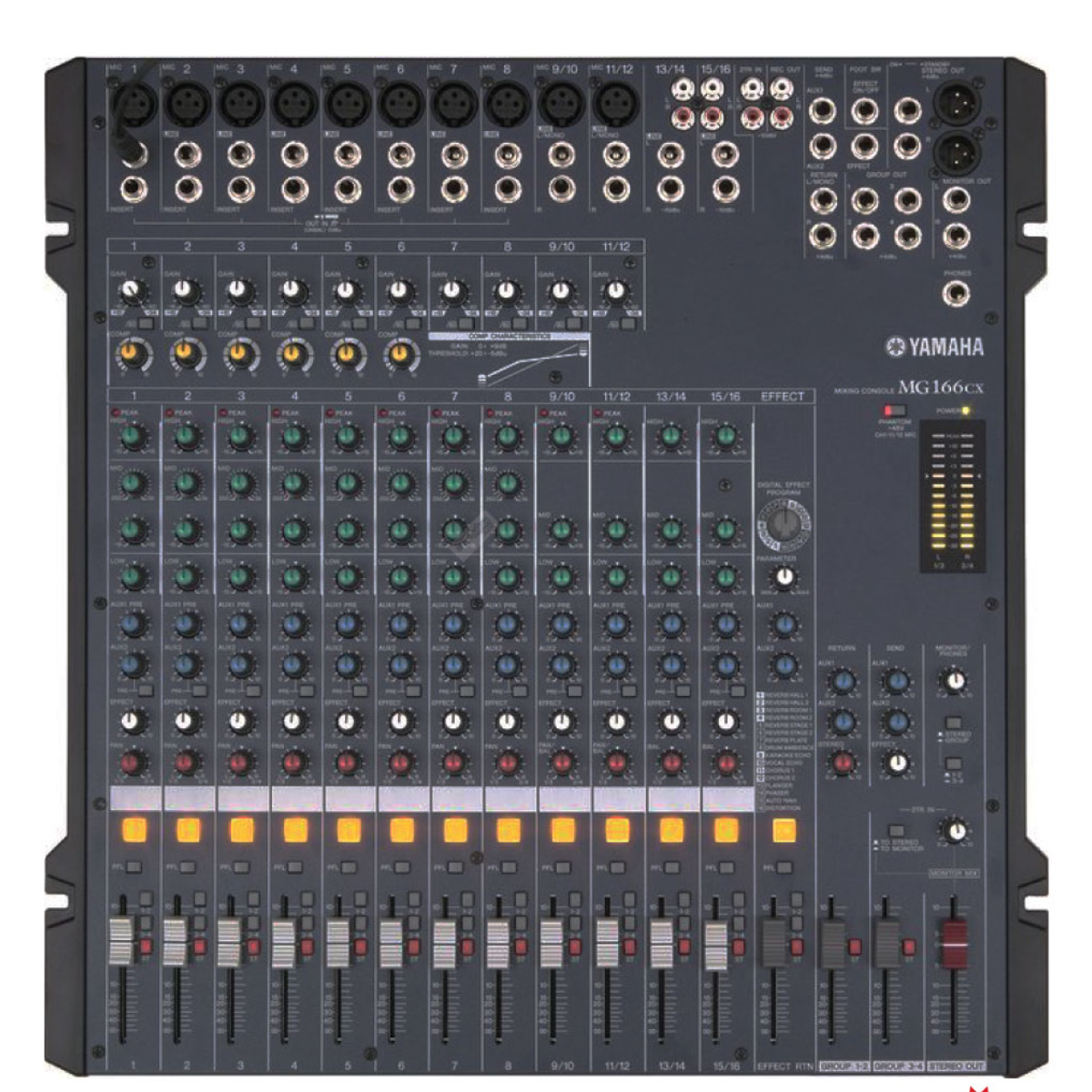

Thông số Mixer Yamaha MG 166CX
| Outline |
MG166CX |
MG124CX |
MG82CX |
| Mixing capability |
Mixing channels |
8 Mono + 4 Stereo |
4 Mono + 4 Stereo |
2 Mono + 3 Stereo |
| GROUP |
4 |
2 |
- |
| AUX |
3 (Incl. 1x Effect send) |
2 (Incl. 1x Effect send) |
1 (Effect send) |
| MAIN |
Stereo |
Stereo |
Stereo |
| Input channel functions |
CH1-6: HPF, Compressor, 3-band mid-sweep PEQ, Intert I/O; CH7-8: HPF, 3-band mid-sweep PEQ, Intert I/O; CH9-16: HPF, 3-band PEQ |
CH1-4: HPF, Compressor, 3-band mid-sweep PEQ, Intert I/O; CH5-8: HPF, 3-band mid-sweep PEQ; CH9-12: HPF, 3-band PEQ |
CH1-2: HPF, Compressor, 3-band PEQ, Intert I/O; CH3-6: HPF, 3-band PEQ; CH7-8: 2-band PEQ |
| On-board processors |
SPX |
SPX |
SPX |
| I/O |
Mic inputs |
10 |
6 |
4 |
| Phantom power |
+48V DC; ON/OFF |
+48V DC; ON/OFF |
+48V DC; ON/OFF |
| Line inputs |
4x Stereo, Return, 2tr in |
4x Stereo, Return, 2tr in |
3x Stereo, Return, 2tr in |
| Control and others |
Foot switch, Lamp |
Foot switch |
Foot switch |
| General specifications |
MG166CX |
MG124CX |
MG82CX |
| Total harmonic distortion |
Less than 0.1% |
Less than 0.1% |
Less than 0.1% |
| Frequency response |
0, +1.0, -3dB 20Hz-20kHz |
0, +1.0, -3dB 20Hz-20kHz |
0, +1.0, -3dB 20Hz-20kHz |
| Hum & noise level |
Equivalent input noise |
-128dBu |
-128dBu |
-128dBu |
| Residual output noise |
-98dBu |
-98dBu |
-100dBu |
| Crosstalk |
-70dB |
-70dB |
-70dB |
| Power requirements |
Use PA-30 AC Adaptor (AC35VCT, 1.4A); Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz |
Use PA-20 AC Adaptor (AC35VCT, 0.94A); Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz |
Use PA-10 AC Adaptor (AC38VCT, 0.62A); Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz |
| Power consumption |
35W |
30W |
21W |
| Dimensions |
W |
478mm; 18-13/16in |
346.2mm; 13-5/8in |
256.6mm; 10-1/8in |
| H |
105mm; 4-1/8in |
86.1mm; 3-3/8in |
62.2mm; 2-7/16in |
| D |
496mm; 19-1/2in (12U) |
436.6mm; 17-3/16in |
302.5mm; 11-15/16in |
| Net weight |
5.5kg; 12.1lbs |
3.2kg; 7.1lbs |
1.6kg; 3.5lbs |
| Accessories |
Owner’s Manual, AC adaptor |
Owner’s Manual, AC adaptor |
Owner’s Manual, AC adaptor |
