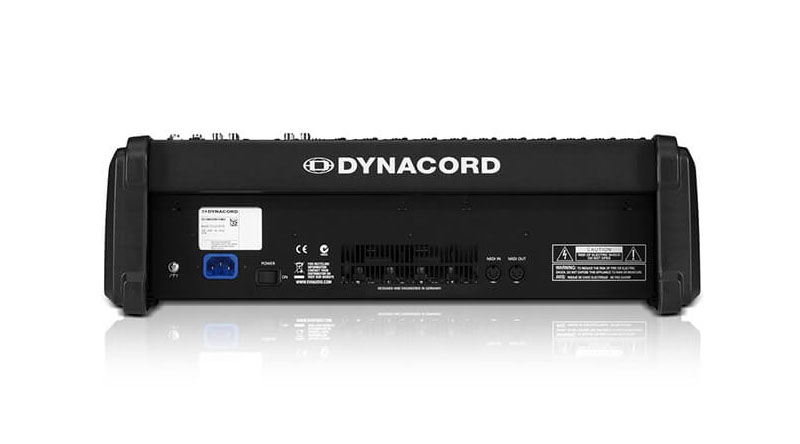

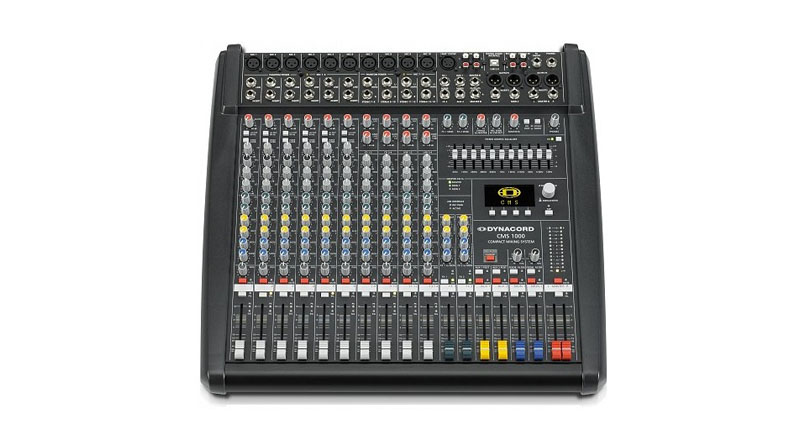

Mixer Dynacord DC-CMS1000-3-MIG

Power Consumption

Without Lamp: 45W; With Lamp: 50W

Height

155mm (6.1")

Width

510.5mm (20.1")

Depth

498.5mm (19.63")

Weight Net

>9.5kg (20.94 lbs)

Auxiliarys (MON, FX, AUX)

2 Pre, 2 Post, 2 Pre/Post switchable

Channels

6

CMRR, MIC input, 1 kHz

>80dB

Digital Audio Interface

Channels: 4 In / 4 Out; AD/DA Conversion: 24-bit; Sampling Rate: 44.1 / 48 / 88.2 / 96kHz; PC Interface: USB2.0, Female Type B; Peak Display: 6 dB before Clip

Displays

128 x 64 pixels, OLED

Effects

Type: Dual stereo 24/48-bit multi effects processors; Effects presets: 100 Factory + 20 User, Tap-Delay; Remote control: Footswitch, MIDI;

Equalization

LO Shelving: ±15dB / 60Hz; MID Peaking, mono inputs: ±15dB / 100Hz to 8kHz; MID Peaking, stereo inputs: ±12 dB / 2.4 kHz; HI Shelving: ±15 dB / 12 kHz; Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz): ±10dB / Q = 1.5 to

Equivalent Input Noise, MIC input, A-weighted, 150 ohms

-130dBu

Filter

LO-CUT, mono inputs: f=80Hz, 18dB/oct; VOICE FILTER, mono inputs: switchable; FEEDBACK FILTER, MON ½: 70Hz to 7kHz, Notch, -9dB

Input Impedances

MIC: 2㏀; Insert Return: > 3.3㏀; 2Track Return & CD In: 10㏀; All other inputs: > 15㏀

Input Sensitivity

MIC: -74dBu (155μV); LINE (Mono): -54dBu (1.55mV); LINE (Stereo): -34dBu (15.5mV); CD (Stereo): -34dBu (15.5mV)

LINE/CD/USB GAIN (Stereo)

-10…+20dB

Maximum SPL

MIC Inputs: +21dBu; Mono Line inputs: +41dBu; Stereo Line inputs: +30dBu; All other inputs: +22dBu; All other outputs: +22dBudB

MIC GAIN (Mono)

0…+60dB

MIC GAIN (Stereo)

+10 to +60dB

MIDI Interface

5-pin DIN connector, In / Out

Noise, Channel inputs to Master A L/R outputs, A-weighted

Master fader down: -97dBu; Master fader 0dB, Channel fader down: -91dBu; Master fader 0dB, Channel fader 0dB, Channel gain unity: -83dBu

Operating Temperature Range

+5 °C…+40 °C (40 °F…105 °F)

Output Impedances

Phones: 47Ω; All other outputs: 75Ω

Phantom Power

48VDC

>Protection

Mixer Outputs (Relay controlled): MON 1, MON 2, MASTER A; Switching Mode Power Supply (μC controlled): Mains Over/Undervoltage, High Temperature

Safety Class

I

Shipping Weight

12.5kg (27.56 lbs)

Total Harmonic Distortion

<0.005%

Channels (Mono + Stereo)

12 + 4

Auxiliarys (MON, FX, AUX)

2 Pre, 2 Post, 2 Pre/Post switchable

MIC GAIN (Mono / Stereo)

0 to +60 dB / +10 to +60 dB

Specifications

LINE/CD/USB GAIN (Stereo)

-10 to +20 dB

THD, at 1 kHz, MBW = 80 kHz

MIC input to Master A L/R outputs, +16 dBu, typical

< 0.005%

Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer output

15 Hz to 70 kHz

Crosstalk, 1 kHz

Fader and FX/AUX/MON-Send attenuation

> 85 dB

Channel to Channel

< -80 dB

CMRR, MIC input, 1 kHz

> 80 dB

Input Sensitivity, all level controls in max. position MIC / LINE (Mono) / LINE (Stereo) / CD (Stereo)

-74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV)

Maximum Level, mixing desk

MIC inputs

+21 dBu

Mono Line inputs / Stereo Line inputs

+41 dBu / +30 dBu

All other inputs

+22 dBu

All other outputs

+22 dBu

Input Impedances

MIC / Insert Return

2 kOhms / > 3.3 kOhms

2Track Return & CD In

10 kOhms

All other inputs

> 15 kOhms

Output Impedances

Phones

47 Ohms

All other outputs

75 Ohms

Equivalent Input Noise, MIC input, A-weighted, 150 ohms

-130 dBu

Noise, Channel inputs to Master A L/R outputs, A-weighted

Master fader down

-97 dBu

Master fader 0 dB, Channel fader down

-89 dBu

Master fader 0 dB, Channel fader 0 dB, Channel gain unity

-82 dBu

Equalization

LO Shelving

±15 dB / 60 Hz

MID Peaking, mono inputs

±15 dB / 100 Hz to 8 kHz

MID Peaking, stereo inputs

±12 dB / 2.4 kHz

HI Shelving

±15 dB / 12 kHz

Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz)

±10 dB / Q = 1.5 to 2.5

Power Consumption

without lamp / with lamp

50 W / 55 W

Filter

LO-CUT, mono inputs

f = 80 Hz, 18 dB/oct.

VOICE FILTER, mono inputs

switchable

FEEDBACK FILTER, MON 1/2

70 Hz to 7 kHz, Notch, -9 dB

Effects

Type, effects presets

Dual stereo 24/48-bit multi effects processors, 100 Factory + 20 User, Tap-Delay

Remote control

Footswitch, MIDI

Display

128 x 64 pixels, OLED

Digital Audio Interface

Channels

4 In / 4 Out

AD/DA Conversion, Sampling Rate

24-bit, 44.1 / 48 / 88.2 / 96 kHz

PC Interface

USB2.0, Female Type B

MIDI Interface

5-pin DIN connector, In / Out

Protection

Mixer Outputs (Relay controlled)

MON 1, MON 2, MASTER A

Switching Mode Power Supply (µC controlled)

Mains Over/Undervoltage, High Temperature

Phantom Power, switchable in groups

48 V DC

Power Requirements (SMPS with auto range mains input)

100 V to 240 V AC, 50 Hz to 60 Hz

Dimensions (W x H x D, without lid), mm

663.5 x 155 x 498.5

Weight, without lid

12 kg

Optional Accessories

Lid

DC-LID1600

Gooseneck Lamp, 12V/5W, 12”, XLR 4 pol.

DC-LITLITE-4P

FS 11 (Footswitch with LED)

DC-FS11
